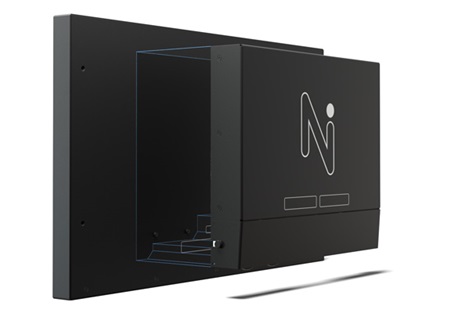

Wave II PERFORMANCE Multitouch 18.5″ (16:9), i5-8365UE

Panel pc with i5-8365UE

The Wave PERFORMANCE is a state-of-the-art computer concept, derived from the interchangeable electronics unit of the already type approved Wave II monitors.

  • 3 years warranty
  • Low power consumption
  • 8th Generation Intel® Core™ Processors
  • Fanless design
  • Windows® 10 IoT Enterprise

Facts

General description

Part number WE185 000 310
Life cycle status Active
Warranty 3 years

Certifications

General CE
Marine DNV

Mechanical

Housing material Black coated aluminium

Power

Input voltage 90-264 VAC (IEC Inlet) (DC single or AC/DC multipower optional)

CPU Intel i5-8365UE
RAM DDR4 2400, configurable size. Standard configuration: 8 GB
FLASH 3 x M2 slot + SATA, configurable size. Standard configuration: 128 GB.

Serial communication

Number of serial ports 3 Port 9pin DSUB
Serial port 1 RS 232
Serial port 2 RS 232
Serial port 3 RS422/485

Ethernet communication

Number of Ethernet ports 2
Ethernet port 1 1×10/100/1000 Base-T (shielded RJ45)
Ethernet port 2 1×10/100/1000 Base-T (shielded RJ45)

Expansion interface

USB 2 x USB 3.1 and 2 x USB 3.1

Environmental

Operating temperature 0°C – +50°C
Storage temperature -20°C – +85°C
Sealing back IP20
Humidity 10% – 90 % non condensing
